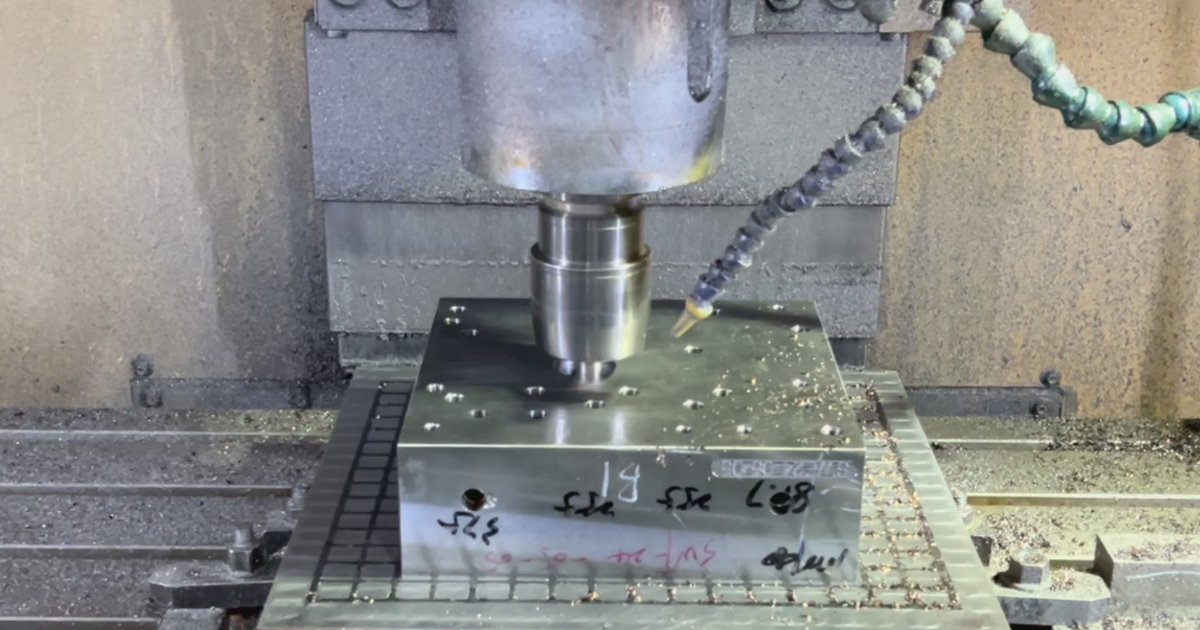

Low Volume Injection Molding — When 500 Parts Beats 5 Million

A hardware startup we worked with last year had a problem. They had validated their product with 50 SLA-printed prototypes. Investors were happy. Early customers were waiting. They needed 5,000 units for a pilot launch.

3D printing 5,000 units would have cost $22 per part — and the material wasn’t the production-grade ABS they needed for snap-fit durability. A full production mold (H13 steel, 4-cavity, hot runner) was quoted at $45,000 — the right tool for 500,000 units, but $40,000 more than they could justify for a 5,000-unit pilot.

The answer was a single-cavity P20 mold for $4,500 — producing 5,000 parts at $1.80 each. $13,500 total, versus $110,000 for 3D printing. And every part was moulded in the actual production material, at production tolerances.

This is the space that low volume injection molding occupies — the gap between prototyping and mass production. It is one of the most misunderstood options in manufacturing, and for the right project, it is the most cost-effective way to get real parts into real users’ hands.

What Counts as “Low Volume”?

In injection molding, volume categories are defined by the tooling investment they justify:

Low volume injection molding — the 500 to 100,000 part range — is where tooling decisions have the highest financial stakes relative to part quantity. A $5,000 tool amortized over 5,000 parts adds $1.00 per part. A $45,000 tool over the same 5,000 parts adds $9.00 per part. The choice of tooling strategy determines whether the program is profitable.

The Three Tooling Options

1. Aluminum Tooling (Prototype & Bridge)

Aluminum molds (typically 7075-T6 aircraft-grade aluminum) are machined directly from billet — no hardening, no EDM, no polishing beyond a basic finish. The material machines three to five times faster than steel.

When aluminum makes sense: You need 200–2,000 parts fast, in a non-abrasive material, and surface finish is not critical. Aluminum tooling is the fastest path to real injection-molded parts.

When it doesn’t: Any glass-filled, mineral-filled, or flame-retardant material. Aluminum cannot withstand abrasive wear from glass fiber reinforcement — the gate and parting line erode within a few thousand shots, producing flash and dimensional drift.

2. P20 Soft Tooling (Bridge & Low Volume Production)

P20 is a pre-hardened tool steel at 28–32 HRC — hard enough to hold dimensional tolerance for tens of thousands of cycles, soft enough to machine efficiently without the need for post-machining heat treatment.

P20 is the standard choice for bridge tooling — a mold built to production standards but without the full hardening and polish of an H13 production tool. It produces parts that are dimensionally identical to what an H13 tool would produce. The difference is tool life and maximum polish level.

The bridge tooling strategy: Start with P20 tooling for your pilot launch and early production. If the product takes off and volumes exceed 50,000 units, commission an H13 multi-cavity tool for the long-term production run. The P20 tool becomes your backup — if the H13 tool goes down for maintenance, production continues on the P20 tool without interruption.

3. H13 Production Tooling

Hardened to 48–52 HRC, H13 tooling is the industry standard for high-volume production. It is not a low-volume option — the tool cost and lead time are only justified by production volumes where the per-part cost advantage of multi-cavity, hot-runner production outweighs the tooling investment. But understanding H13 helps you understand what you are not paying for when you choose P20.

Low Volume Injection Molding vs 3D Printing

The comparison that matters is not the headline cost. It is the part you get at the end.

When Low Volume Injection Molding Wins

You need production-grade material properties. 3D-printed parts — even high-end SLS or MJF parts — do not have the same mechanical properties as injection-molded parts. Layer adhesion creates anisotropic strength. Snap-fits that work on a printed prototype fail on an injection-molded part because the material behaves differently. If your part has snap-fits, living hinges, press-fits, or threaded inserts, you need to test with injection-molded parts in the actual production material.

You need more than 100 parts. The crossover point where injection molding becomes cheaper than 3D printing depends on part geometry, but for most parts in the 50–200 gram range, it is somewhere between 50 and 200 units. Above 500 units, injection molding is almost always cheaper — and the gap widens with every additional unit.

You need consistent surface finish. Layer lines are inherent to additive manufacturing. Post-processing (vapor smoothing, bead blasting, painting) can reduce them but cannot eliminate the fundamental layered surface topology. Injection molding produces the surface finish of the mold — which can be anything from VDI 45 matte to SPI A-1 optical mirror.

You need to validate your production process. If your eventual plan is mass production injection molding, low volume injection molding lets you validate mold design, material selection, gate location, and process parameters on real tooling before committing to a multi-cavity production tool. Lessons learned on a $5,000 P20 mold can save $50,000 on the production tool.

When 3D Printing Wins

You need fewer than 50 parts and they are geometrically simple. At very low quantities, the tooling cost of injection molding cannot be amortized.

Your design is still changing. If you are on revision 12 of a part and expecting revision 13 next week, do not cut a mold. 3D print until the design is frozen. A mold is a commitment to a geometry — changing a mold after it is built costs money and time.

Your part geometry cannot be injection molded. Parts with internal lattice structures, conformal cooling channels, or geometries that are physically impossible to eject from a two-part mold may genuinely require additive manufacturing. But these cases are rarer than most designers think — an experienced mold designer can often suggest a moldable alternative that achieves the same function.

The Cost Breakdown

Here is a real cost comparison for a representative part — a device housing approximately 120 × 80 × 25mm, moulded in ABS:

At 5,000 units: P20 tooling delivers parts at $14,500 total — saving $75,500 versus 3D printing. The aluminum tool is slightly cheaper but leaves no margin for additional orders.

At 50,000 units: The H13 multi-cavity tool becomes the most economical option. The P20 tool is still competitive at $88,000 — and would have been the right choice for the pilot phase that proved the market before committing to the H13 investment.

The strategy is not to pick one tooling approach and stick with it. The strategy is to match the tooling to the current phase of the product lifecycle and transition when the economics justify the next investment.

What About Insert Molding and Overmolding at Low Volume?

Both are available in low volume — with some constraints.

Insert molding (placing metal components — threaded inserts, bushings, contacts — into the mold before injection) requires P20 tooling minimum. The additional complexity of insert loading and the risk of insert displacement during injection mean aluminum tooling is generally not suitable. Low volume insert molding is common for medical device components and electronics housings with threaded assembly points.

Overmolding at low volume is typically done via insert-overmold or two-step molding rather than a dedicated 2K rotary tool. The substrate part is molded on one press, then transferred to a second press where the overmold material is injected. This avoids the cost of a $30,000+ 2K rotary tool while producing identical part quality. Cycle time is longer — two molding cycles instead of one — but at low volumes, the tooling cost saving outweighs the cycle time penalty.

Scaling from Low Volume to Production

The bridge tooling approach follows a deliberate sequence:

1. Pilot phase (500–5,000 units): P20 single-cavity tool. Fast to market. Low financial risk. Proves the design and the market.
2. Ramp phase (5,000–50,000 units): Same P20 tool continues production. If demand is sustained, begin planning the H13 production tool.
3. Production phase (50,000+ units): Commission H13 multi-cavity tool with hot runner. Transfer production to the new tool. Retain the P20 tool as backup capacity.

At each transition, the decision to invest in the next level of tooling is informed by real market data — not forecasts. This is the financial logic of bridge tooling: you pay slightly more per part in the early phase in exchange for not committing to a $40,000 tool before you know the product will sell.

Frequently Asked Questions

What is the minimum order quantity for low volume injection molding?

No formal minimum. We run prototype batches from 500 pieces. Below 500 pieces, the per-part cost becomes dominated by setup time (material drying, press setup, first-off inspection) and 3D printing may be more economical. Above 500 pieces, injection molding is almost always cheaper.

Can I use my aluminum prototype tool for production?

Aluminum tooling has a finite life — typically 5,000–20,000 shots depending on material and part geometry. If your production volume exceeds the tool’s remaining life, you will need to commission a steel tool. Running an aluminum tool past its serviceable life produces dimensional drift and flash that no amount of process adjustment can correct.

How quickly can I get low volume parts?

From file approval: aluminum tooling delivers T1 samples in 7–14 days. P20 tooling delivers T1 samples in 15–25 days. Production parts ship 5–10 days after sample approval. The total timeline from file to first production shipment is typically 3–5 weeks for P20 tooling.

Do low volume molds require maintenance?

Yes. All injection molds require maintenance. For P20 tooling at low volumes (under 50,000 shots), maintenance is minimal — clean and inspect the mold between production runs, verify ejector pin function, check cooling channels for blockage. The maintenance burden increases with shot count.

Can you convert an aluminum or P20 tool to a production tool later?

You cannot convert an aluminum tool to steel. A P20 tool can be modified — cavities can be re-machined, gates can be adjusted, cooling can be improved — but it cannot be hardened to H13 levels after machining. For programs that start with P20 and scale to full production, the standard approach is to commission a new H13 tool based on the validated P20 mold design, incorporating any improvements identified during the pilot phase.

Low volume injection molding exists because the gap between “print 50” and “mold 500,000” is where most hardware products live — at least for a while. The right tooling strategy at this stage is the one that minimizes financial risk while delivering parts that are real enough to sell, real enough to test, and real enough to learn from.
