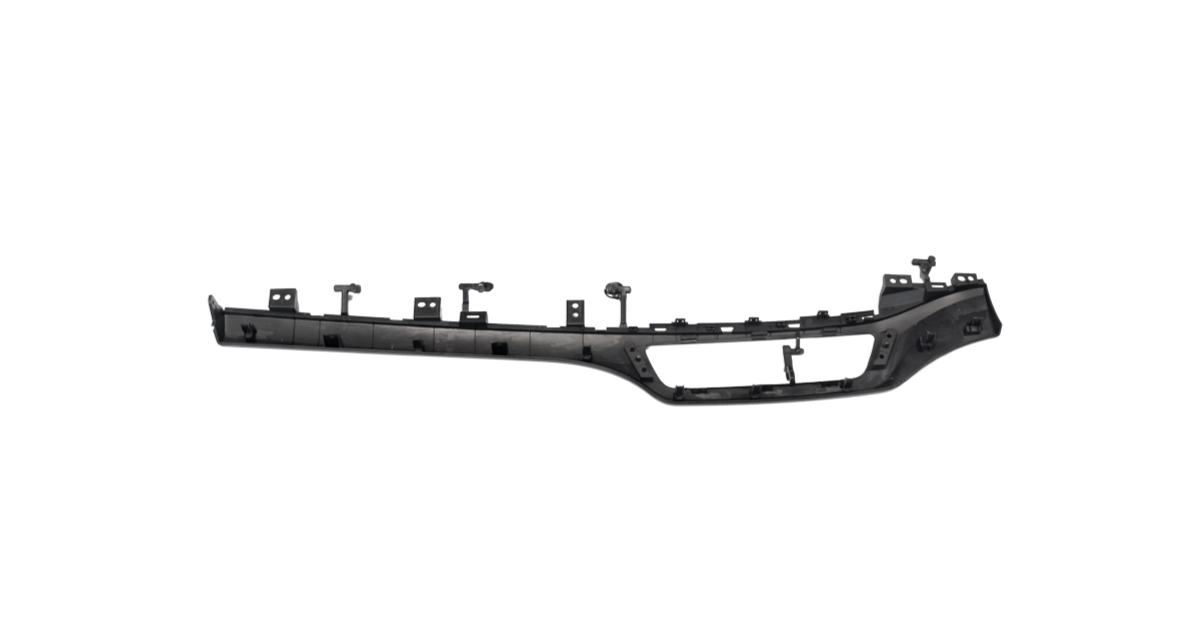

Injection Molding for Automotive Parts — PPAP, Tolerances, and Material Specs
Automotive plastic parts live in an environment that consumer electronics never see. Under-hood components cycle from -40°C cold soak to 120°C operating temperature on every drive. Interior trim parts endure 1,000 hours of UV exposure testing. Brackets and structural components carry continuous load for the 15-year service life of the vehicle. And every single part — from a door handle bezel to an engine cover bracket — is supported by a documentation package that traces material, process, and dimensional data back to the specific production lot, on the specific press, on the specific day it was molded.
This is not standard injection molding with extra paperwork. It is a different production discipline — one defined by the Production Part Approval Process (PPAP), Advanced Product Quality Planning (APQP), and the material reporting requirements of the International Material Data System (IMDS).
This guide covers what automotive engineers and buyers need to know when sourcing plastic injection molded parts for automotive applications — from tooling requirements through documentation through production validation.
Why Automotive Injection Molding Is Different
Three things distinguish automotive injection molding from general industrial molding:
1. The documentation is part of the product. In consumer electronics, a good part is a part that fits and functions. In automotive, a good part is a part that fits, functions, and is supported by a complete documentation trail that an OEM auditor can trace in under ten minutes. If the part is perfect but the PPAP package is incomplete, the part is not acceptable.
2. The validation happens before production, not during. APQP requires that the production process be validated — not the parts, the process — before a single production unit is shipped. Process capability studies (Cpk), measurement system analysis (MSA), and control plans are completed and approved during the pre-production phase. Production starts when the process is proven capable — not the other way around.
3. The material must be reported, not just specified. Under the EU End-of-Life Vehicles (ELV) Directive and similar regulations, every substance in every component of a vehicle sold in Europe must be reported through IMDS. The molder must report not just the base resin, but the precise grade, the colourant, the UV stabilizer, the flame retardant, and every other additive — by CAS number and by weight percentage.
PPAP Level 3: What It Requires
PPAP (Production Part Approval Process) is the industry-standard framework defined by the Automotive Industry Action Group (AIAG) for validating that a supplier can consistently produce parts that meet the customer’s specifications. There are five submission levels. Level 3 is the default for new automotive production parts.
The 18 Elements of a PPAP Submission
| # | Element | Description |
|---|---|---|
| 1 | Design Records | Customer part drawing, CAD model, and all engineering change notices |
| 2 | Engineering Change Documents | Authorized changes to the design since the original release (if any) |
| 3 | Customer Engineering Approval | Signed-off first article or prototype approval from the customer |
| 4 | Design FMEA (DFMEA) | Failure mode analysis of the part design — typically on the customer side |
| 5 | Process Flow Diagram | Map of every process step from raw material receiving through shipping |
| 6 | Process FMEA (PFMEA) | Failure mode analysis of the manufacturing process — every potential failure, its severity, occurrence, detection, and RPN (Risk Priority Number) |
| 7 | Control Plan | Inspection points, frequencies, methods, sample sizes, and reaction plans for every process step |
| 8 | Measurement System Analysis (MSA) | Gauge R&R studies proving the measurement equipment is adequate for the tolerances being inspected |
| 9 | Dimensional Results | Full dimensional layout on a defined number of parts (typically 6–10 pieces) from a significant production run |
| 10 | Material & Performance Test Results | Material certifications, mechanical test results, thermal test results, chemical resistance — per the material specification on the drawing |
| 11 | Initial Process Capability Study | Cpk data on all critical and significant characteristics (SC/CC) identified on the drawing |
| 12 | Qualified Laboratory Documentation | Accreditation certificates for any external laboratory used for testing |
| 13 | Appearance Approval Report (AAR) | For cosmetic parts — colour, gloss, texture approval per the master sample |
| 14 | Sample Production Parts | Physical parts from the submission lot, retained by the customer |
| 15 | Master Sample | A signed-off reference part retained by the supplier for the life of the program |
| 16 | Checking Aids | Any custom gauges, fixtures, or checklists used for inspection |
| 17 | Customer-Specific Requirements | Any additional requirements specific to the OEM (Ford, GM, Toyota, etc.) |
| 18 | Part Submission Warrant (PSW) | The cover sheet — signed by the supplier, countersigned by the customer — that formally approves the PPAP submission |
A Level 3 submission requires elements 1–18 to be submitted to the customer. A Level 4 submission requires elements 1–18 plus the warrant, but not the sample parts. Level 5 includes everything plus a supplier on-site review.
What PPAP Means for the Molder
For the injection molder, PPAP Level 3 means:
- Dedicated production run. The PPAP submission must be produced from a production-representative run — typically 300–500 consecutive shots — on the production press, with the production tool, by the production operator, using the production material lot. You cannot PPAP from a prototype run.
- Documented process parameters. Injection pressure, hold pressure, melt temperature, mold temperature, cooling time, and cycle time are recorded for every shot in the submission run and locked as the approved process window.
- Statistical capability. For every dimension marked SC (Significant Characteristic) or CC (Critical Characteristic) on the drawing, Cpk must be ≥ 1.33 for SC and ≥ 1.67 for CC. If Cpk falls below these thresholds, the process is not capable and production cannot proceed until corrective action is taken and re-validated.
- Dimensional layout. Every dimension on the drawing is measured on every sample part — not just the critical few. A part with 120 dimensions on the drawing requires 120 measurements per sample part.
A complete Level 3 PPAP package for a moderately complex injection-molded part typically runs 80–120 pages and requires 3–5 weeks of preparation time on top of the tooling lead time.
APQP: The Framework Behind PPAP
APQP (Advanced Product Quality Planning) is the structured process that leads to PPAP submission. It is a five-phase methodology that runs from program concept through to production feedback.
| APQP Phase | Activities | Injection Molding Deliverables |
|---|---|---|
| Phase 1: Plan & Define | Customer requirements, program scope, timing | Feasibility review, preliminary BOM, tooling estimate |
| Phase 2: Product Design | DFMEA, design verification, prototypes | DFM report, mold flow analysis, material recommendation |
| Phase 3: Process Design | PFMEA, control plan, process flow | Process flow diagram, PFMEA, preliminary control plan, measurement system plan |
| Phase 4: Product & Process Validation | PPAP submission, production trial run | PPAP package (all 18 elements), production validation run, Cpk data |
| Phase 5: Feedback & Continuous Improvement | SPC monitoring, corrective action, lessons learned | In-process SPC data, process capability trending, annual re-validation |
Phases 1–3 are completed before tooling is ordered. Phase 4 is the PPAP submission itself. Phase 5 is ongoing for the life of the program.
The key concept: APQP does not end at PPAP approval. Phase 5 requires continuous monitoring and documented evidence that the process remains in control. If Cpk drifts below 1.33 on a significant characteristic, the supplier must initiate corrective action — even if every part inspected is still within specification. The process, not just the parts, must remain capable.
IMDS: What You Must Report
The International Material Data System (IMDS) is the automotive industry’s database for tracking every substance in every component of every vehicle. It was created to support the EU ELV Directive (2000/53/EC) and REACH regulation (EC 1907/2006), and it is now a mandatory requirement for virtually every automotive OEM globally.
For the injection molder, IMDS reporting means:
Every constituent must be declared. A PA66-GF30 part is not reported as “PA66-GF30.” It is reported as:
- PA66 base polymer — CAS number 32131-17-2 — 67% by weight
- Glass fiber — CAS number 65997-17-3 — 30% by weight
- Heat stabilizer — CAS number specific to the additive — 2% by weight
- Carbon black masterbatch — CAS number 1333-86-4 — 1% by weight
Each substance must be listed as a proportion of the total part weight, and the total must sum to 100%. If a substance is on the REACH Candidate List or the GADSL (Global Automotive Declarable Substance List), it must be flagged. If it exceeds the reporting threshold (typically 0.1% by weight), it must be justified.
The IMDS submission must be accepted before PPAP can be approved. Most OEMs will not sign a Part Submission Warrant until the IMDS submission status shows “Accepted” in the system. An IMDS rejection — even for an administrative error like an incorrect material classification — blocks the entire PPAP timeline.
Dimensional Tolerances: What Automotive Demands
Automotive tolerances are generally tighter than industrial molding — not because the parts are more precise by nature, but because the tolerance is specified per function rather than per process capability.
| Characteristic Type | Cpk Required | Typical Tolerance | Example Feature |
|---|---|---|---|
| Critical (CC) | ≥ 1.67 | ±0.05mm or tighter | Sensor mounting hole, sealing surface, snap-fit engagement |
| Significant (SC) | ≥ 1.33 | ±0.10mm to ±0.15mm | Datum surfaces, assembly interfaces, clip positions |
| Standard | No Cpk | ±0.15mm to ±0.30mm | Non-functional external surfaces, cosmetic features |
GD&T is standard, not optional. Automotive drawings use Geometric Dimensioning and Tolerancing (GD&T) per ASME Y14.5 or ISO 1101. True position, profile of a surface, and perpendicularity are common callouts on injection-molded part drawings. The mold designer and quality engineer must interpret GD&T and design the tooling and inspection plan accordingly.
The mold must account for material-specific shrinkage. PA66-GF30 shrinks approximately 0.3–0.5% in the flow direction and 0.8–1.2% in the transverse direction — it is anisotropic, and the difference is significant. Mold steel is cut oversize by the shrinkage factor, but the shrinkage factor is not a single number — it varies with wall thickness, gate location, and process parameters. A mold flow analysis with shrinkage compensation is standard for all automotive tooling at JBRplas.
Automotive-Grade Materials
The material specification on an automotive part drawing typically cites both the performance standard and the specific grade. Common automotive-grade materials for injection molding:
| Material | Typical Application | Key Standard |
|---|---|---|
| PA66-GF30 | Under-hood brackets, engine covers, fan shrouds | Heat stabilized to 120°C+ continuous; UL94 HB |
| PA6-GF30 | Structural brackets, mounting clips | Lower cost than PA66; adequate for interior and semi-structural |
| PBT-GF30 | Connector housings, sensor bodies | Excellent electrical properties; low moisture absorption |
| PP-TD20 (talc-filled) | Interior trim, door panels, HVAC ducts | Low cost, good stiffness, scratch-resistant grades available |
| PC/ABS | Instrument panel trim, centre console bezels | Impact resistance at low temperature; paintable |
| POM (Acetal) | Fuel system components, seat belt mechanisms | Low friction, excellent chemical resistance |
| PPS-GF40 | High-temp under-hood (turbocharger area) | Continuous 200°C+ capability |
Material certification requirements for PPAP:
- Supplier’s material certification per lot
- Mechanical test results (tensile strength, elongation, flexural modulus, impact) per ISO or ASTM
- Thermal test results (HDT, Vicat) for heat-exposed parts
- Chemical resistance certification for fuel/oil/fluid-exposed parts
- IMDS submission with full substance disclosure
- For appearance parts: colour spectrophotometer data (ΔE < 1.0 from master)
Tooling Requirements for Automotive
Automotive production tooling is specified differently from general industrial tooling:
| Requirement | Automotive Standard | Industrial Standard |
|---|---|---|
| Steel grade | H13 minimum (48–52 HRC) | P20 (28–32 HRC) |
| Shot life warranty | 500,000 minimum; typically 1,000,000 | 100,000–300,000 |
| Spare parts | Ejector pins, springs, heater bands per spare parts list | On request |
| Cooling | Documented conformal or drilled circuits; flow rate and ΔT specified | Standard cooling |
| Mold serialization | Permanent marking per customer specification | Standard marking |
| Maintenance schedule | Written preventive maintenance plan with intervals | Supplier responsible |
Multi-cavity requirements for automotive: When multiple cavities are used, each cavity is treated as a separate production stream for PPAP purposes. Dimensional data is reported per cavity, not averaged. If cavity 3 is producing parts at Cpk 1.29 while cavities 1, 2, and 4 are at Cpk 1.45+, cavity 3 must be corrected before the PPAP can be approved — even if all four cavity averages exceed the requirement.
Production Validation and Ongoing Requirements
PPAP approval is not the end of the quality requirements. It is the start of production-phase quality monitoring.
Post-PPAP requirements for automotive molders:
- SPC on critical characteristics. Control charts maintained per shift. Cpk recalculated periodically.
- Annual re-validation. Full dimensional layout and process capability study repeated annually for active programs.
- Change management. Any change to material, process, tooling, or production location requires customer notification. Significant changes (material substitution, tooling modification, press relocation) may require a new PPAP submission.
- Record retention. PPAP documentation, production records, and material certifications retained for the life of the program plus the vehicle service period — typically 15–20 years.
- Layered Process Audit (LPA). Regular audits by supervision, engineering, and management to verify that the control plan is being followed exactly as written.
Frequently Asked Questions
Do you have experience with specific OEM requirements?
JBRplas has supplied injection-molded components to automotive programs requiring PPAP Level 3 documentation, including parts delivered to Tier 1 suppliers for Ford, GM, and European OEM programs. Each OEM has specific requirements documented in their supplier quality manual — we review these at the RFQ stage and confirm compliance before quoting.
Can you handle IMDS reporting?
Yes. We submit IMDS data for every automotive program where it is required. The submission is prepared during the PPAP phase using the material supplier’s substance disclosure, and we manage the submission through to “Accepted” status.
What is your typical lead time for an automotive program?
Tooling lead time for an automotive production mold (H13, with full PPAP documentation package) is typically 35–50 working days from design approval to T1. The PPAP submission run and documentation package preparation typically adds 3–5 weeks after dimensional approval. Total timeline from design approval to PPAP submission: approximately 10–14 weeks.
Do you offer PPAP for non-automotive programs?
Yes. While PPAP originated in automotive, the methodology is increasingly used in medical device, aerospace, and industrial equipment supply chains. We can provide PPAP-style documentation packages (dimensional layout, capability study, material certification, control plan) for any program that requires them. The scope is defined at the RFQ stage.
Can you provide a PPAP package for an existing tool that was not originally documented to PPAP standards?
This is possible but requires a production run on the existing tool with full dimensional layout, capability study, and material certification. If the tool was not built to PPAP standards, dimensional results may reveal issues that require tooling correction. We recommend a pre-PPAP dimensional audit on the existing tool before committing to a full PPAP submission.
Automotive injection molding is not a different manufacturing process. It is the same process — executed with a level of documentation, validation, and process control that makes every production decision auditable. For buyers and engineers sourcing automotive plastic parts, the question is not “Can this supplier mold the part?” It is “Can this supplier prove — with data — that they molded every production lot correctly?”
