Conception du moulage par injection : Principes, innovations et applications industrielles

Core Principles of Injection Molding Design

The Injection Molding Process

The process begins with melting thermoplastic pellets, injecting the molten material into a precision-engineered mold cavity under high pressure, and cooling it to form the desired shape. Key stages include:

• Clamping: Securing the mold halves.
• Injection: Filling the cavity with molten polymer.
• Cooling: Solidification to ensure dimensional stability.
• Ejection: Removing the finished part.

Efficiency hinges on cycle time optimization, material selection, and mold design.

Design for Manufacturability (DFM)

DFM principles ensure designs are optimized for production:

• Uniform Wall Thickness: Prevents defects like sink marks and warping.
• Draft Angles: Facilitate part ejection (typically 1–3°).
• Ribs and Gussets: Enhance structural integrity without adding bulk.
• Gate Placement: Controls material flow and minimizes weld lines.
• Undercut Avoidance: Reduces mold complexity and cost.

Advanced CAD software enables virtual simulations to predict filling patterns, air traps, and cooling inefficiencies, reducing prototyping iterations.

Mold Design: Engineering Precision

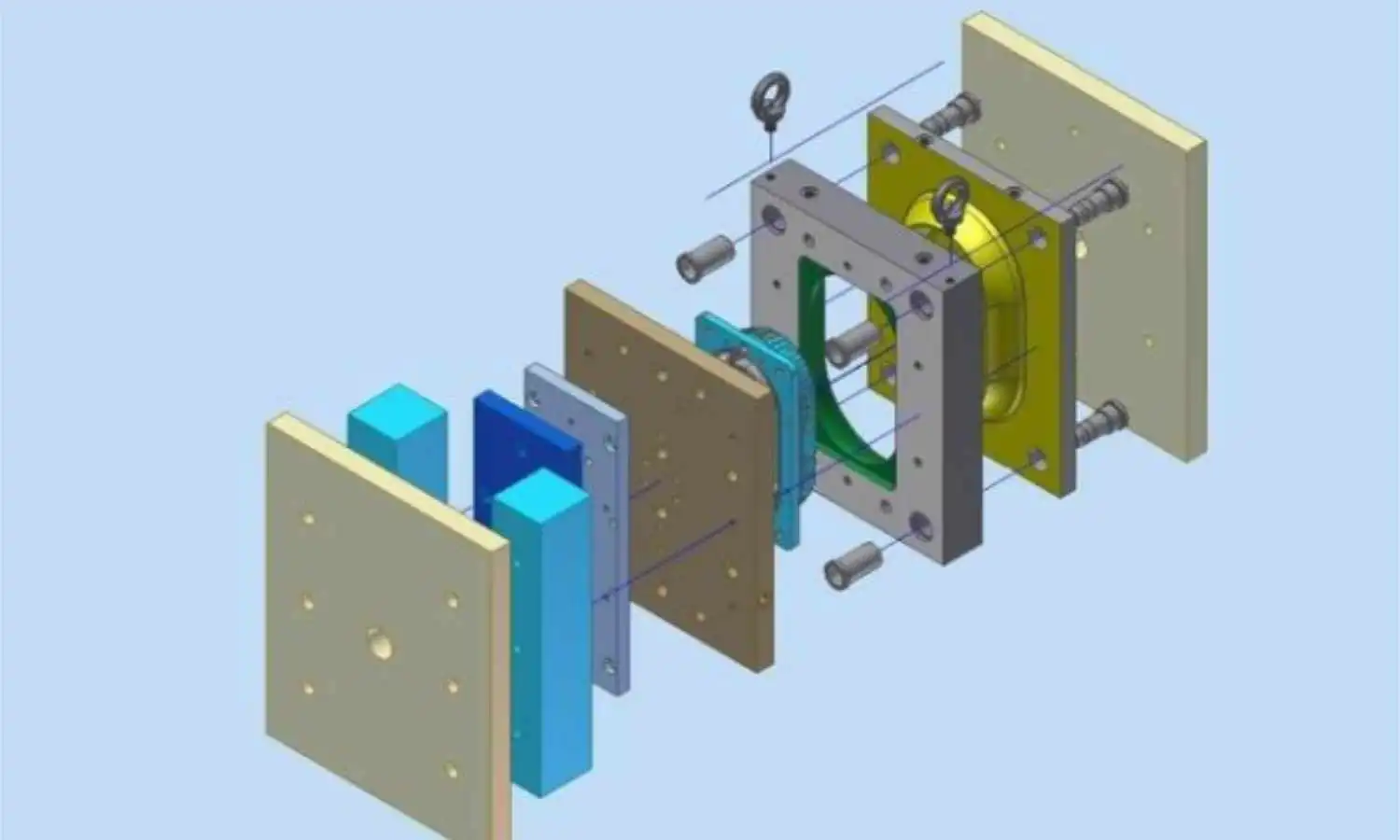

Mold Components and Functionality

A mold consists of two halves (core and cavity), cooling channels, ejector pins, and a gating system. Critical design considerations include:

• Cooling Channel Layout: Ensures uniform heat dissipation to minimize cycle time.
• Venting: Prevents air entrapment, which causes burn marks.
• Surface Finish: Impacts part aesthetics (e.g., polished for gloss, textured for grip).

Advanced Mold Technologies

• Refroidissement conforme: 3D-printed molds with curved cooling channels for faster, uniform cooling.
• Multi-Cavity Molds: Enable simultaneous production of multiple parts.
• Hot Runner Systems: Reduce material waste by maintaining molten polymer in the runners.

Material Selection: Balancing Performance and Cost

Thermoplastics dominate injection molding due to their recyclability and versatility. Key materials include:

Emerging Trends:

• Bio-Based Polymers: Reduce carbon footprint (e.g., PLA).
• Glass/Carbon Fiber Composites: Enhance mechanical properties.

Process Optimization: Controlling Variables

Critical process parameters include:

• Melt Temperature: Affects viscosity and flow.
• Injection Pressure/Speed: Determines filling consistency.
• Cooling Time: Impacts cycle time and part warpage.
• Hold Pressure: Compensates for shrinkage during solidification.

Industry 4.0 Integration:

• IoT Sensors: Monitor real-time parameters (pressure, temperature).
• Predictive Analytics: Anticipate machine maintenance needs.
• Digital Twins: Simulate production scenarios to optimize settings.

Quality Assurance and Sustainability

Quality Control Methods

• Dimensional Inspection: Coordinate Measuring Machines (CMM) verify tolerances (±0.005–0.1 mm).
• Mechanical Testing: Tensile strength, impact resistance.
• Statistical Process Control (SPC): Tracks deviations in real time.

Sustainable Practices

• Material Recycling: Regrind sprues and runners for reuse.
• Energy-Efficient Machines: All-electric presses reduce power consumption by 50–70%.
• Lightweighting: Minimizes material use without compromising strength.

Industry Applications and Innovations

• Automobile: Complex geometries (e.g., intake manifolds) with heat-resistant polymers.
• Médical: Sterilizable, biocompatible components (e.g., syringe bodies).
• Electronics: EMI-shielding housings and precision connectors.
• Consumer Goods: Ergonomic designs with aesthetic finishes.

Future Trends:

• Multi-Material Molding: Combines rigid/flexible polymers in a single cycle.
• AI-Driven Design: Generative algorithms optimize part geometry for weight and strength.
• Circular Economy: Closed-loop systems for zero-waste production.

Conclusion: The Path to Mastery

Mastering injection molding design requires a multidisciplinary approach:

1. Collaboration: Engineers, material scientists, and designers must align on functional and aesthetic goals.
2. Continuous Learning: Stay updated on advancements in materials, simulation tools, and automation.
3. Sustainability Focus: Prioritize eco-friendly materials and energy-efficient processes.

By integrating precision engineering with cutting-edge technologies, manufacturers can achieve cost-effective, high-quality production while meeting the evolving demands of global industries. Injection molding remains not just a manufacturing method but a catalyst for innovation in the digital age.
